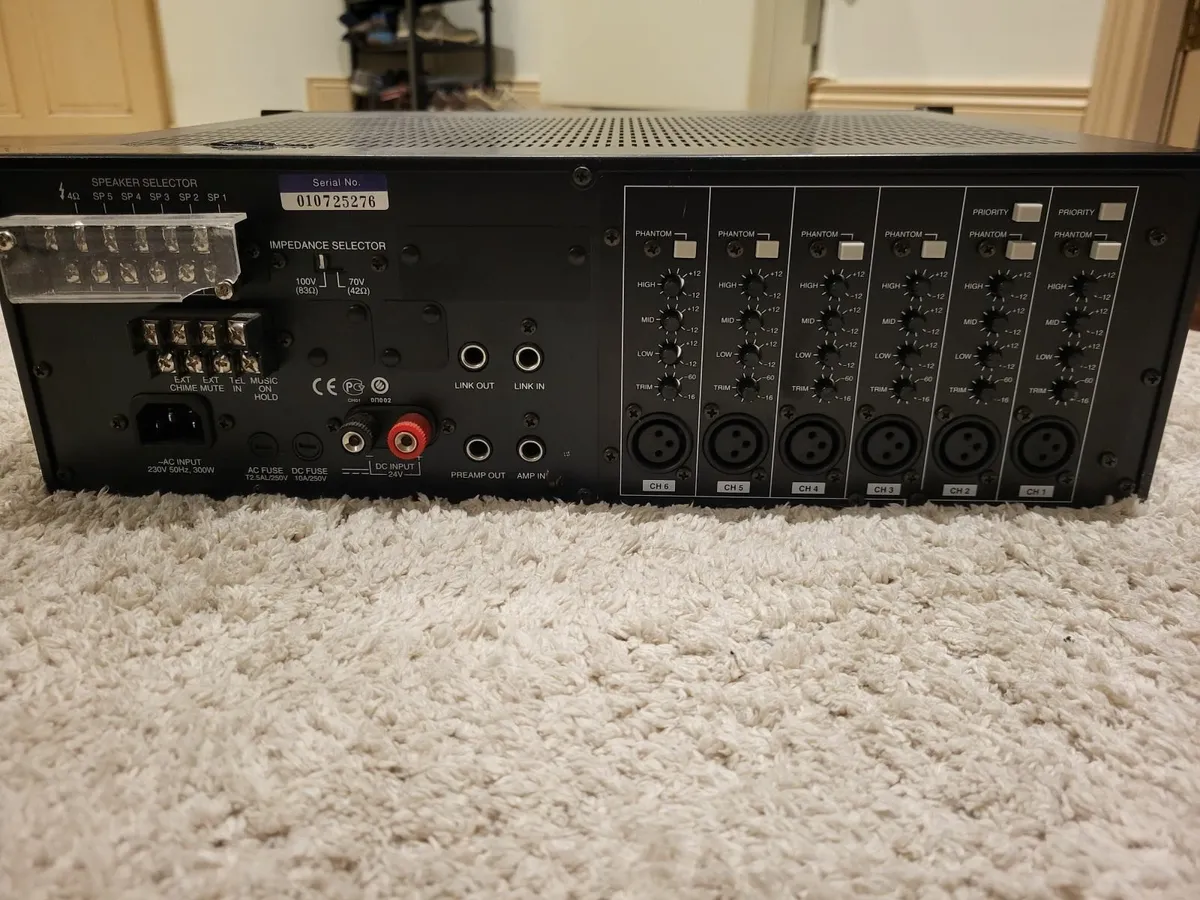

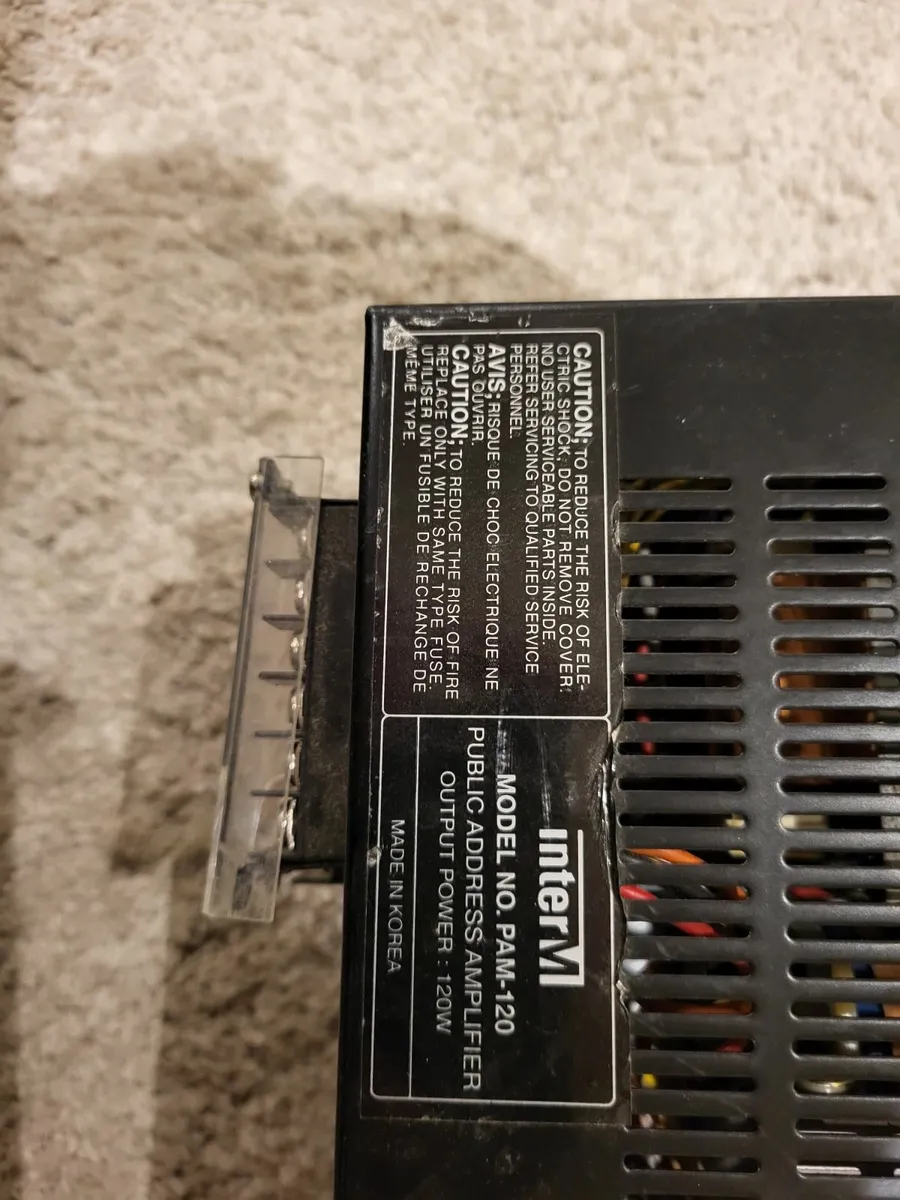

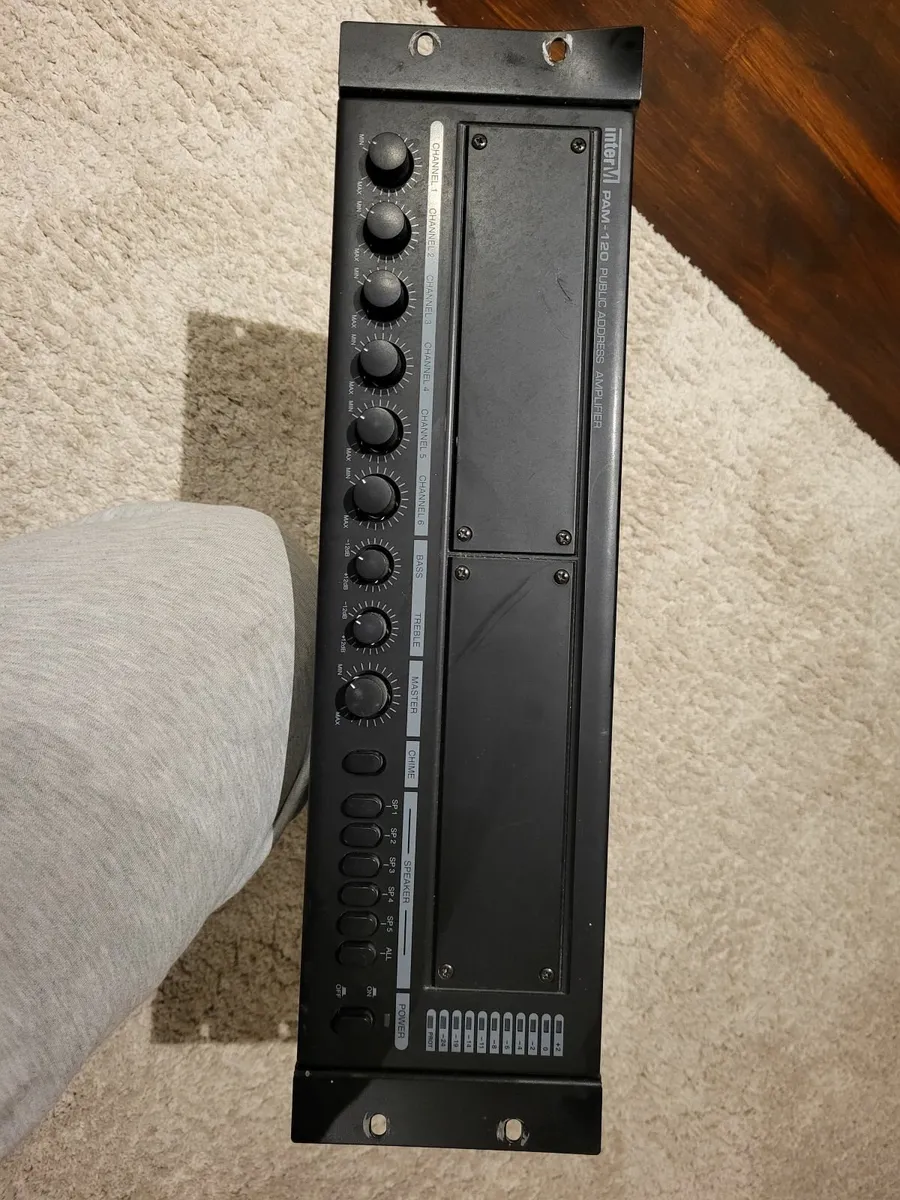

Public address Amplifier Pam 120

PAM-120:120W(RMS) Input Sensitivity/Impedance CH1~6..............................................1mV-160mV/600Ω Link In.......................................................100mV/15KΩ Telephone In.............................................0.775V/600Ω Amp In .............................................................1V/47KΩ Frequency Response................................80Hz~20KHz T.H.D (at 1KHz Rated Output)..................Less than 1% S/N ....................................................Better than 100dB Tone Control(100Hz, 10KHz) ............................. 12dB EQ Control (100Hz, 1KHz, 10KHz) .................... 12dB Speaker Output/Impedance .................................60W(4Ω), 83Ω(70V), 165Ω(100V) .................................120W(4Ω), 42Ω(70V), 83Ω(100V) Pre Amp Out/Impedance..................................1V/600Ω Music on Hold/Impedance.........................0.775V/600Ω Link Out/Impedance ..................................500mV/600Ω GENERAL Power Source ..........AC 110V-240V, 50/60Hz, DC 24V Power Consumption ...............................PAM-60:150W .............................................................PAM-120:300W Weight...................................................PAM-60:11.4kg ............................................................PAM-120:13.5kg Dimensions .....................420(W) 132(H) 360(D)mm
