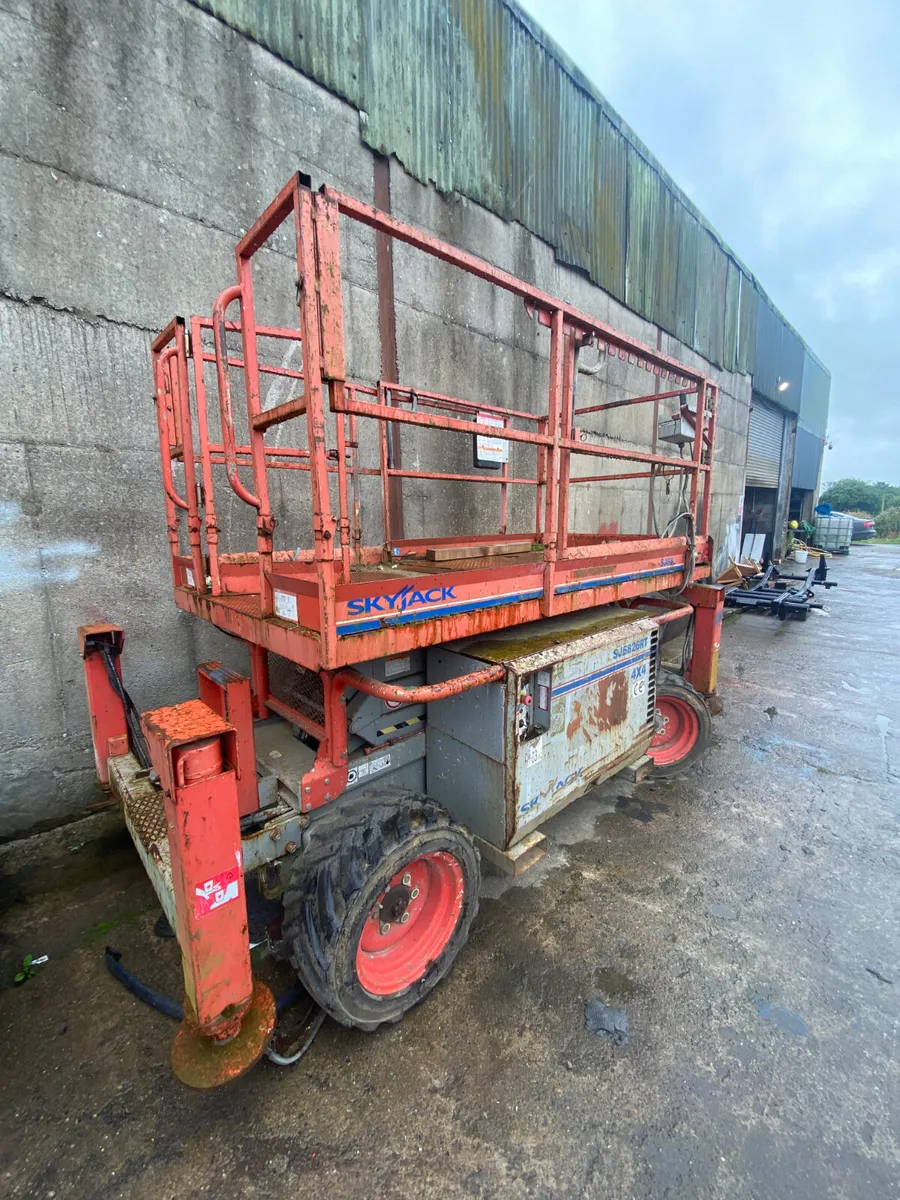

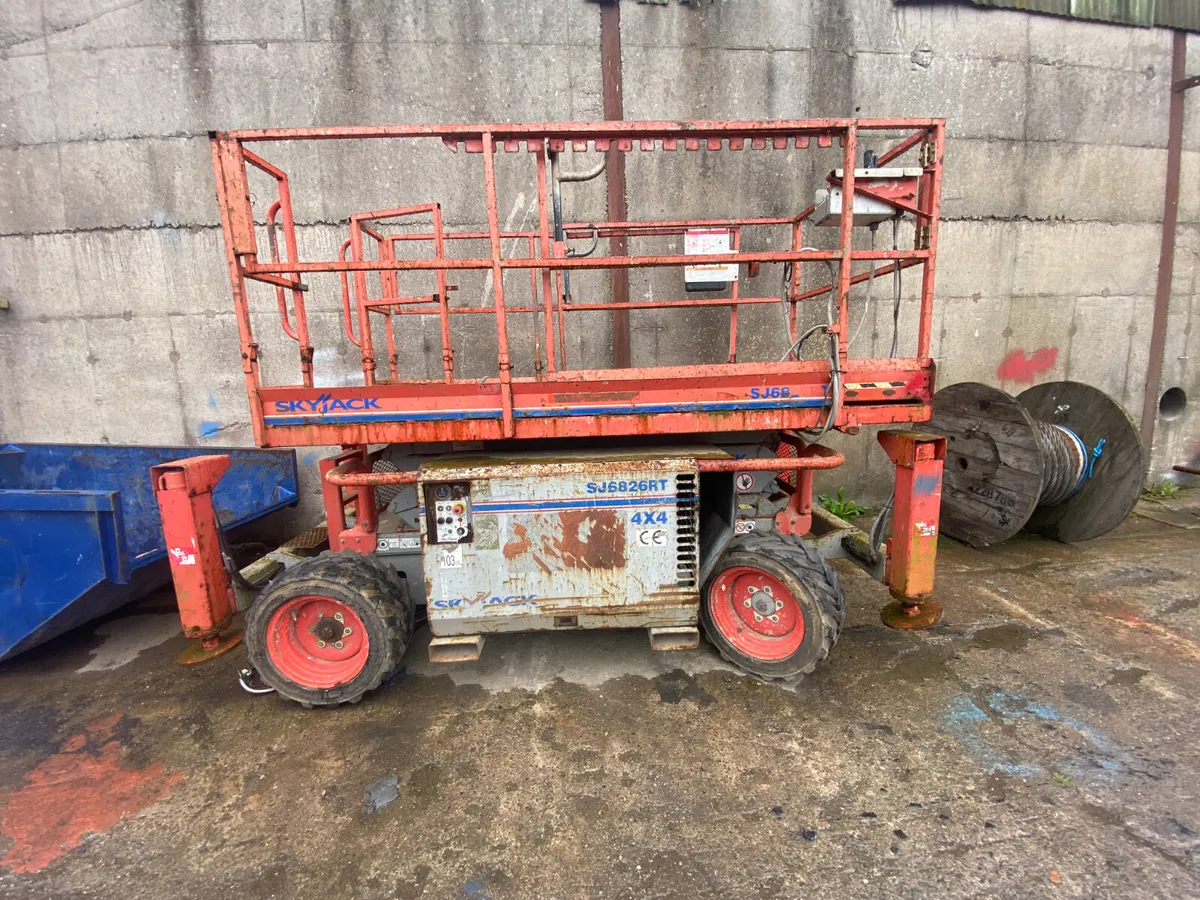

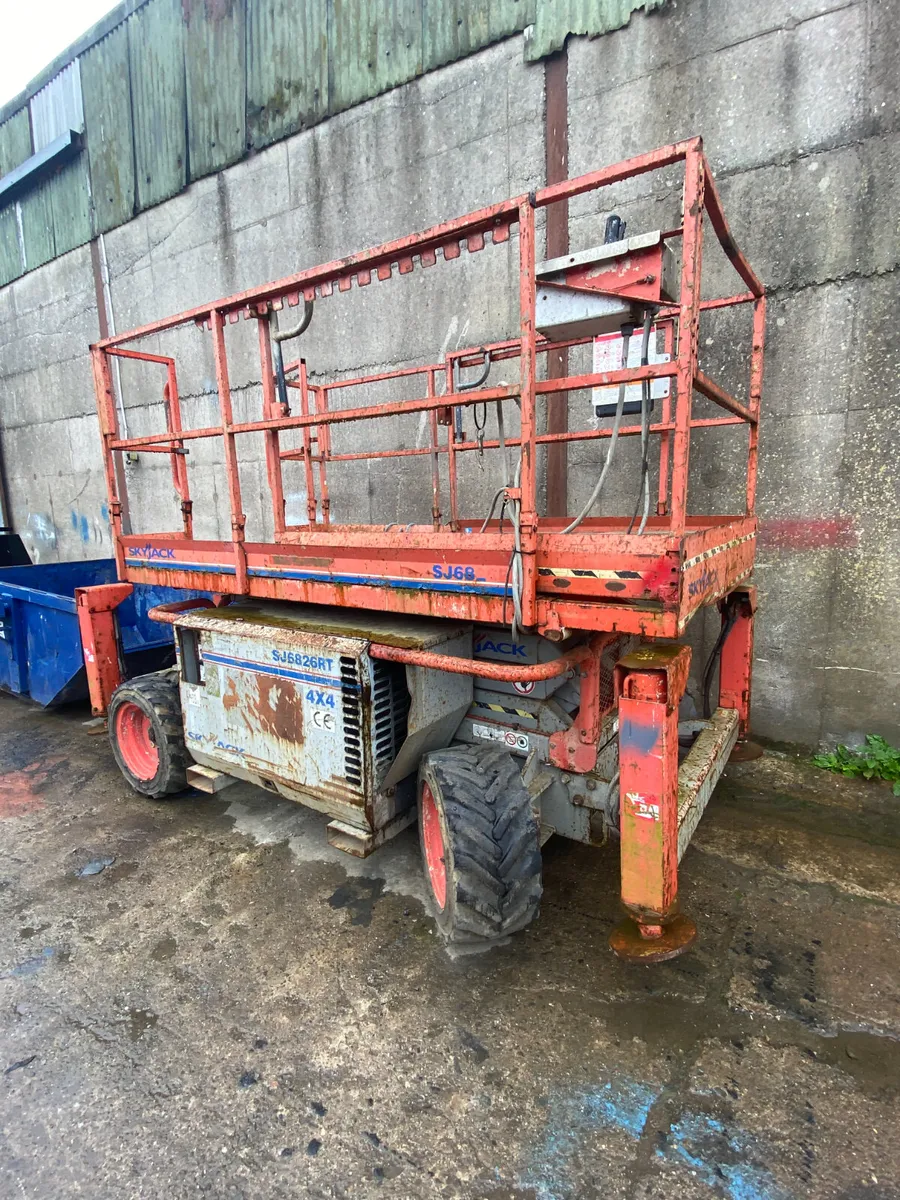

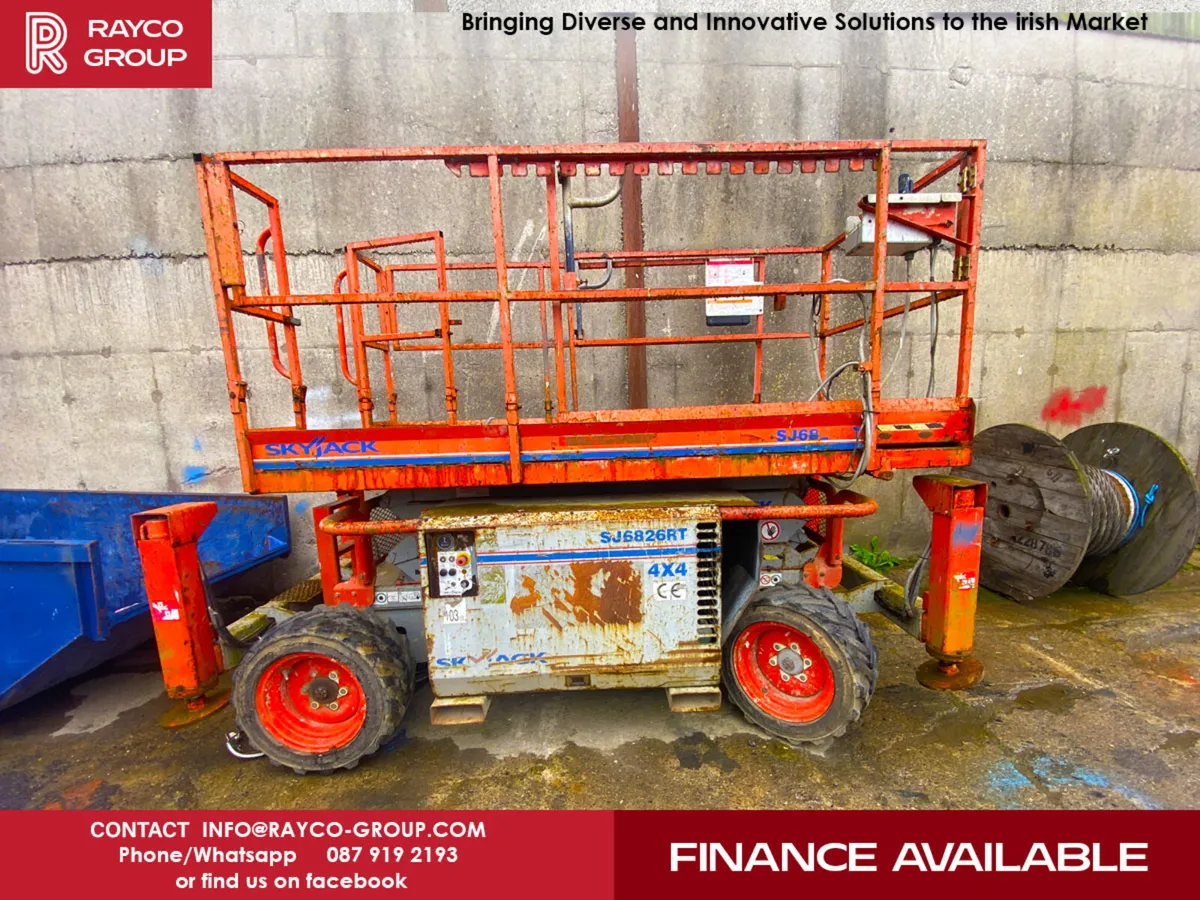

Skyjack Lift

Work Height 32’ (9.75 m) 38’ (11.58 m) Raised Platform Height 26’ (7.92 m) 32’ (9.75 m) Lowered Platform Height 48.5” (1.23 m) 54” (1.37 m) Overall Width 69.5” (1.76 m) 69.5” (1.76 m) Overall Length 107” (2.72 m) 107” (2.72 m) Stowed Height (Rails Up) 93.5” (2.38 m) 99” (2.51 m) Stowed Height (Rails Down) 63.5” (1.61 m) 69” (1.75 m) Platform Width (Inside Dimension) 56” (1.42 m) 56” (1.42 m) Platform Length (Inside Dimension) 96” (2.44 m) 96” (2.44 m) ■ Crossover symmetrical 4WD ■ Drivable at full height with roll out deck fully extended ■ Shroud style, impact resistant composite control box with extended cable ■ 5’ (1.52 m) Roll out extension deck ■ Dual fuel (gas/propane) or diesel engine ■ 90° Swing out engine tray ■ Multiple wet disc spring applied hydraulic release brakes ■ 110V AC Outlet on platform with GFI ■ Up to 45% gradeability ■ Foam-filled low profile grip lug tires ■ Tilt alarm with drive & lift cut-out ■ Tilt sensor (4.5° x 2.5°) ■ Lanyard attachment points ■ All motion audible alarm ■ Operator horn ■ Hinged railing system ■ Forklift pockets and tie down / lift lugs ■ Overload sensing system ■ Fold down hinged railing system ■ Full height spring hinged entry gate at rear of unit ■ SKYCODED™ Color coded and numbered wiring system ■ Telematics ready ■ 2-Year Gold Leaf Warranty (5-year structural warranty)
