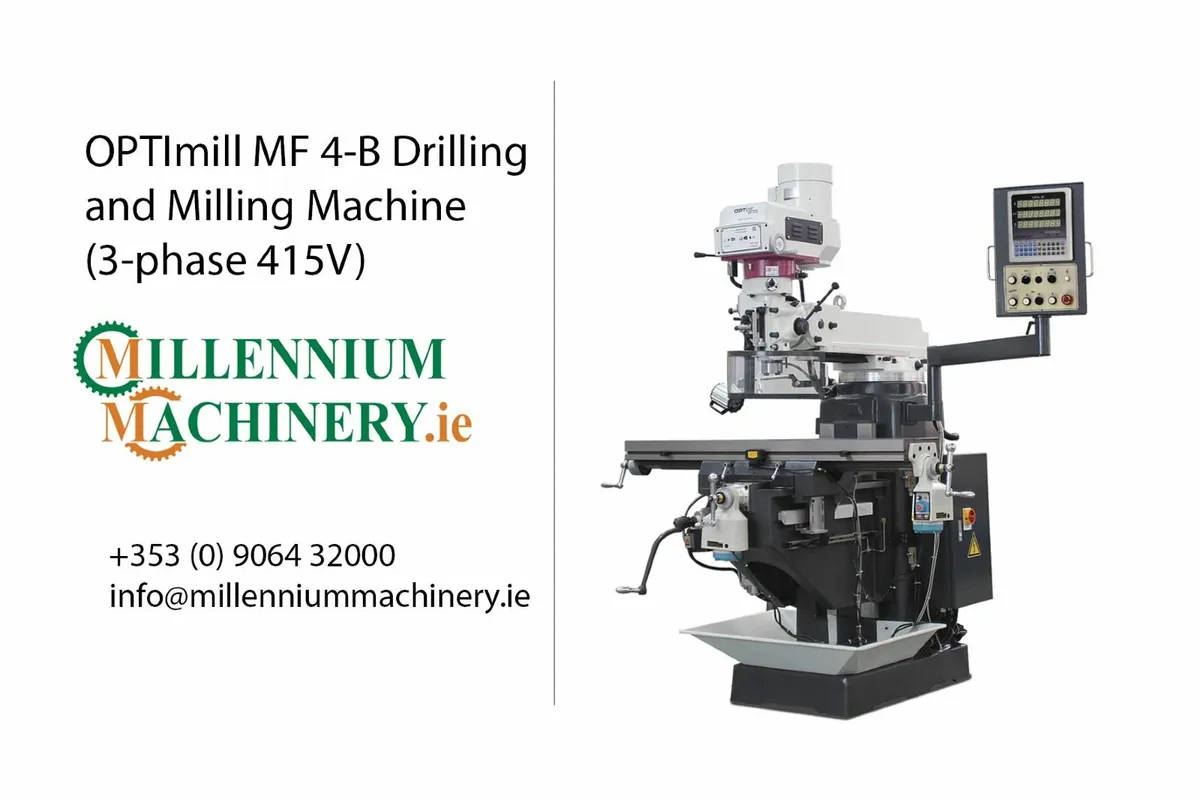

OPTImill MF 4-B Drilling and Milling Machine (3-ph

OPTImill MF 4-B – Heavy-Duty Drilling & Milling Machine with 3-Axis DRO The OPTImill MF 4-B is a multifunctional, industrial-grade drilling and milling machine featuring a mechanically stepless speed control, a solid Meehanite cast design, and an integrated 3-axis digital position display (DPA 31 Plus). Ideal for high-precision operations in demanding workshop environments. Key Features: • Mechanically stepless speed control (60 – 4200 RPM) with 2-speed gearbox • DPA 31 Plus 3-axis digital readout for precise positioning • High-precision spindle with ≤ 0.01 mm concentricity (tapered roller bearings) • Milling head tilts ±45° for angular operations • Automatic quill feed – 3 stages: 0.04 / 0.08 / 0.15 mm/rev • Micro-feed system and mechanical spindle brake • Coolant device and height-adjustable safety screen with microswitch • Adjustable drilling depth stop with millimeter scale • Right/left rotation for tapping Solid, large cross table (1370 x 254 mm) with T-slots and 300 kg load capacity X- and Z-axis with 55° dovetail guides; Y-axis with adjustable flat guide Generously dimensioned table with adjustable end stops Milling head Y-axis travel: 470 mm Motor power: 2.2 kW Dimensions & Capacity: • Machine size: 2400 x 2160 x 2300 mm • Net weight: approx. 1260 kg Quill stroke: 127 mm Quill diameter: 86 mm T-slot size: 16 mm (3 slots, 63 mm spacing) Max spindle-to-table clearance: 405 mm Table load: 300 kg Condition: Brand new Delivery: • Fast delivery available across Ireland • Collection available from our showroom Price shown excludes VAT #MillingMachine #OPTImillMF4B #HeavyDutyMill #DrillingMachine #MetalworkingTools #EngineeringWorkshop #MachineTools #IndustrialMachinery #PrecisionMachining #WorkshopEquipment #BuyMachineryIreland
