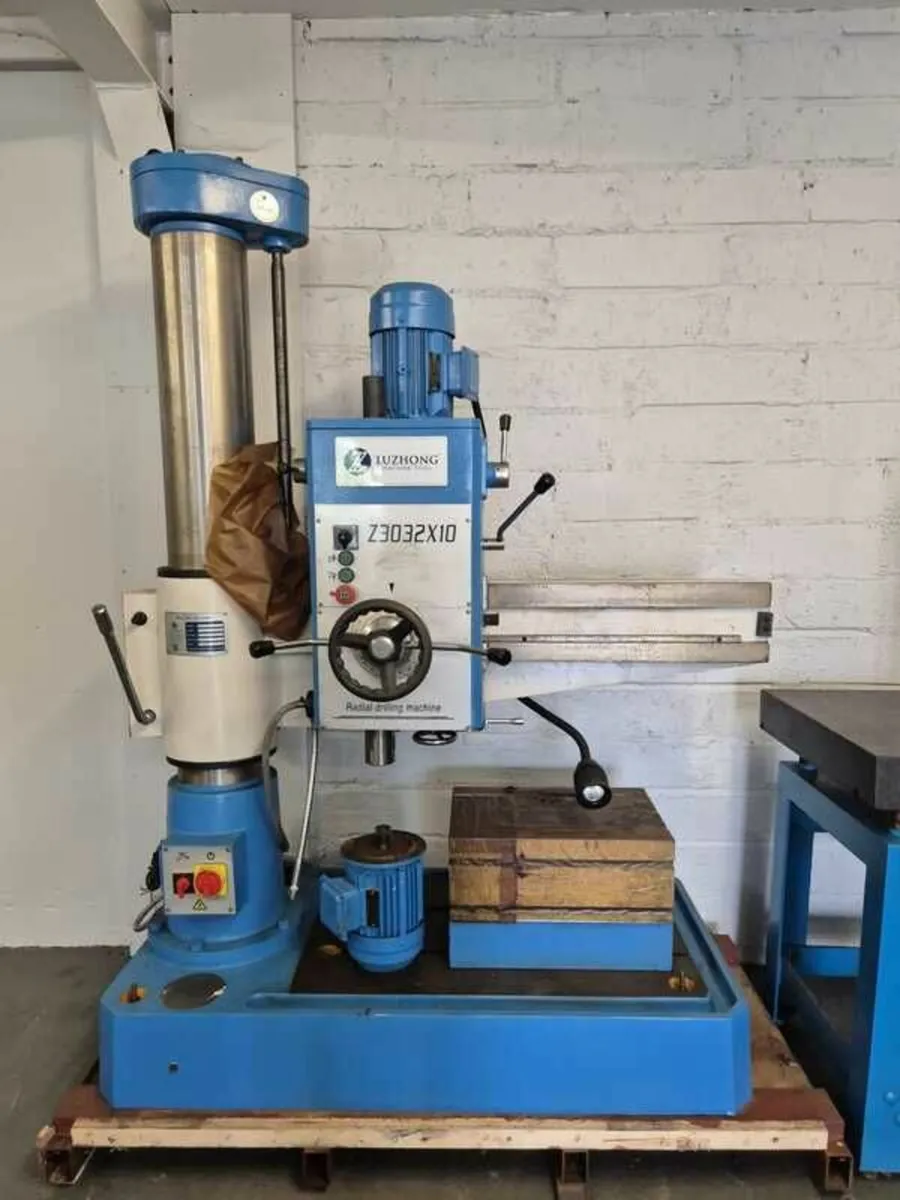

Radial Arm Drill Z3032x10

Max. drilling diameter mm Φ32 Column diameter mm 200 Distance of headstock horizontal movement mm 710 Distance spindle nose and working surface of base mm 330-1060 Rocker arm lift distance mm 730 Spindle travel 120mm Spindle taper MT4 Spindle speeds range r/min 108 162 262 398 665 1000（6 steps） Spindle feeding range mm/r 0.10 0.16 0.25（3 steps） Max. spindle allows feed resistance N 5300 Rocker arm lifting speeds m/min 1.21 Rocker rotary angle ° + 90° Main motor power kw 1.5/2.2 Lifting motor power kw 0.55 Cooling pump motor power kw 0.04 Net weight kg 1080 Overall dimensions L×W×H mm 1400×660×2060
