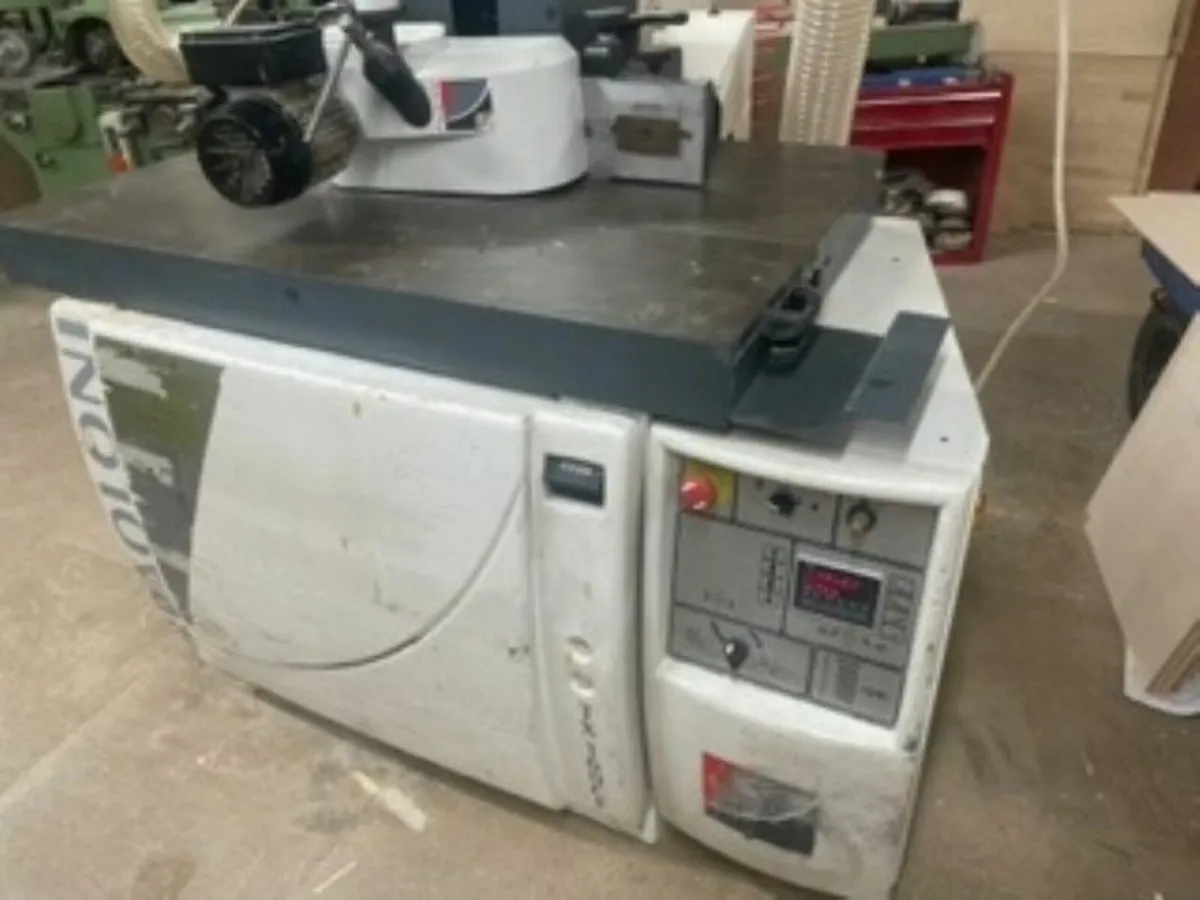

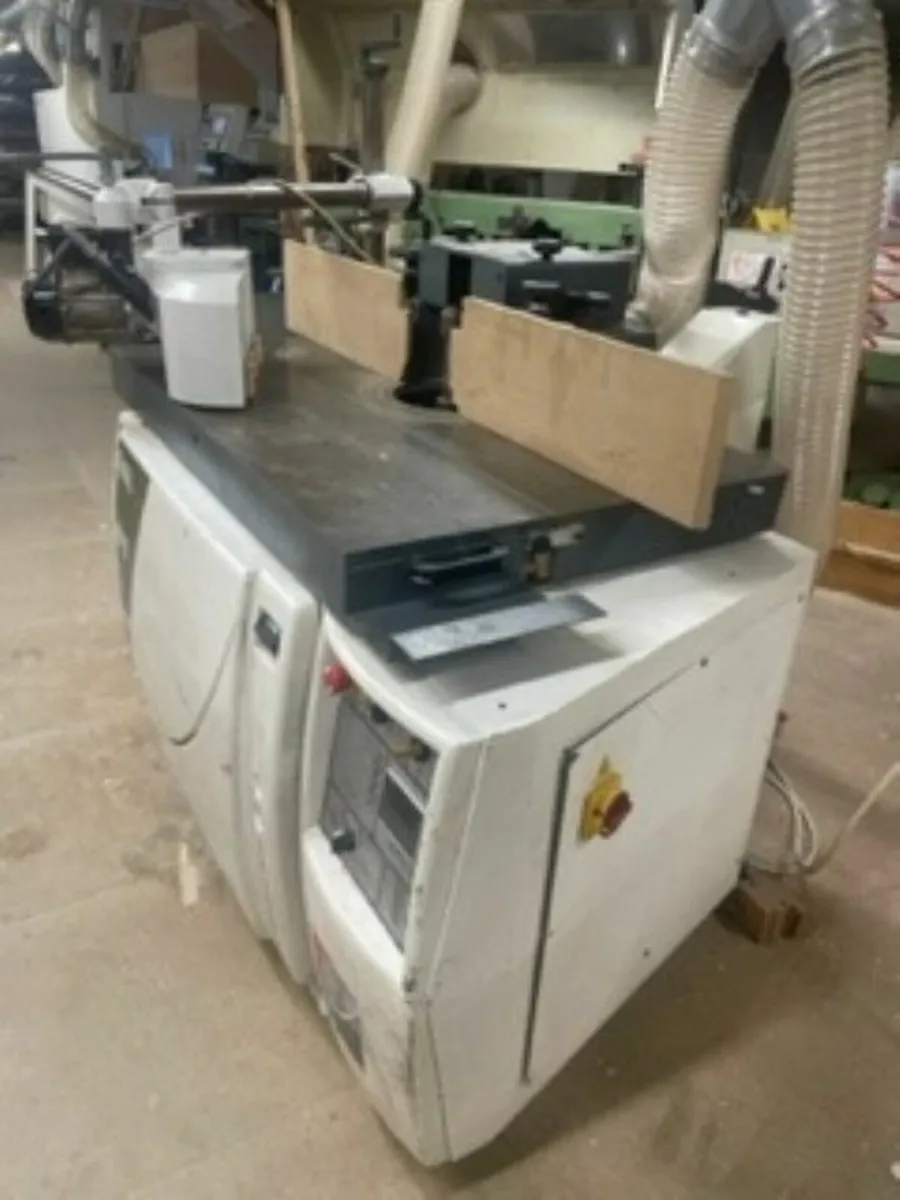

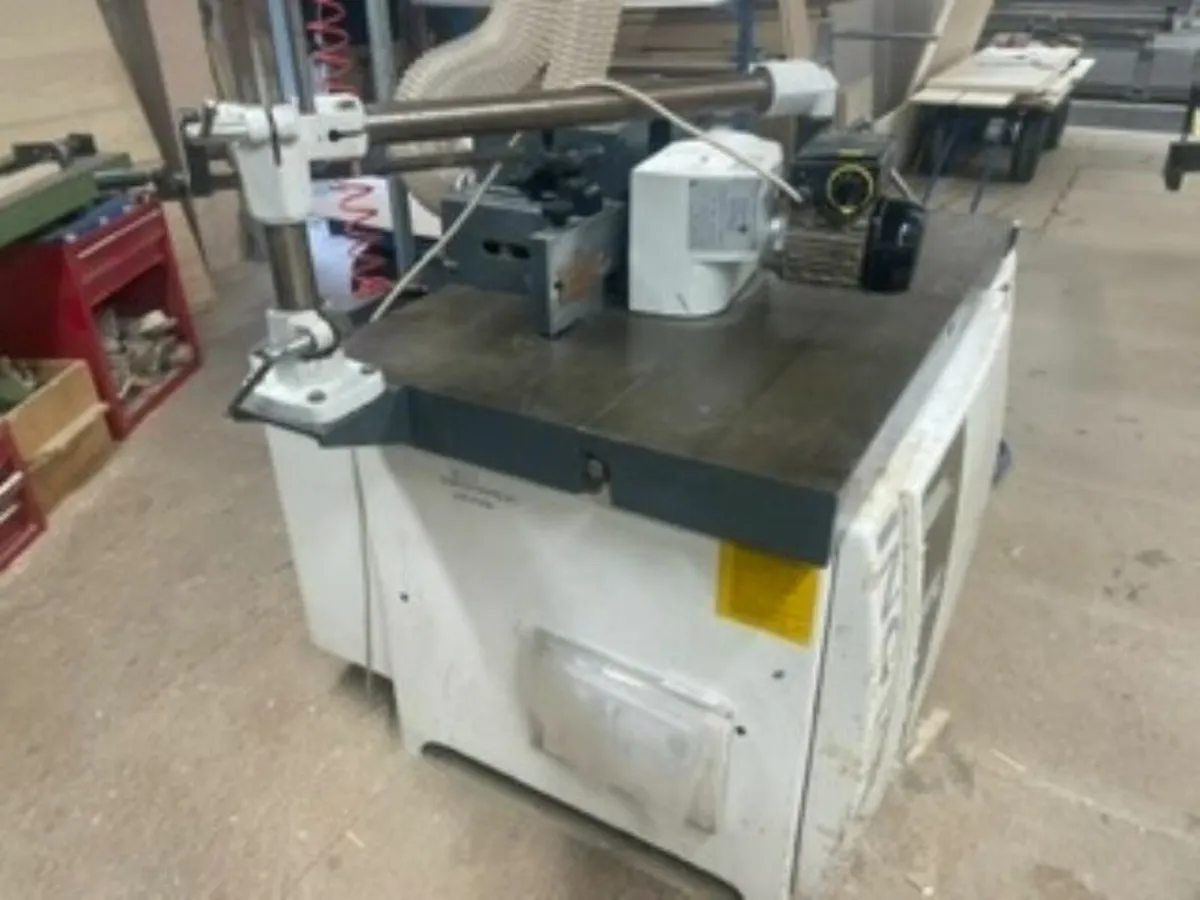

Used PAOLONI TX160 Tilting Spindle Moulder

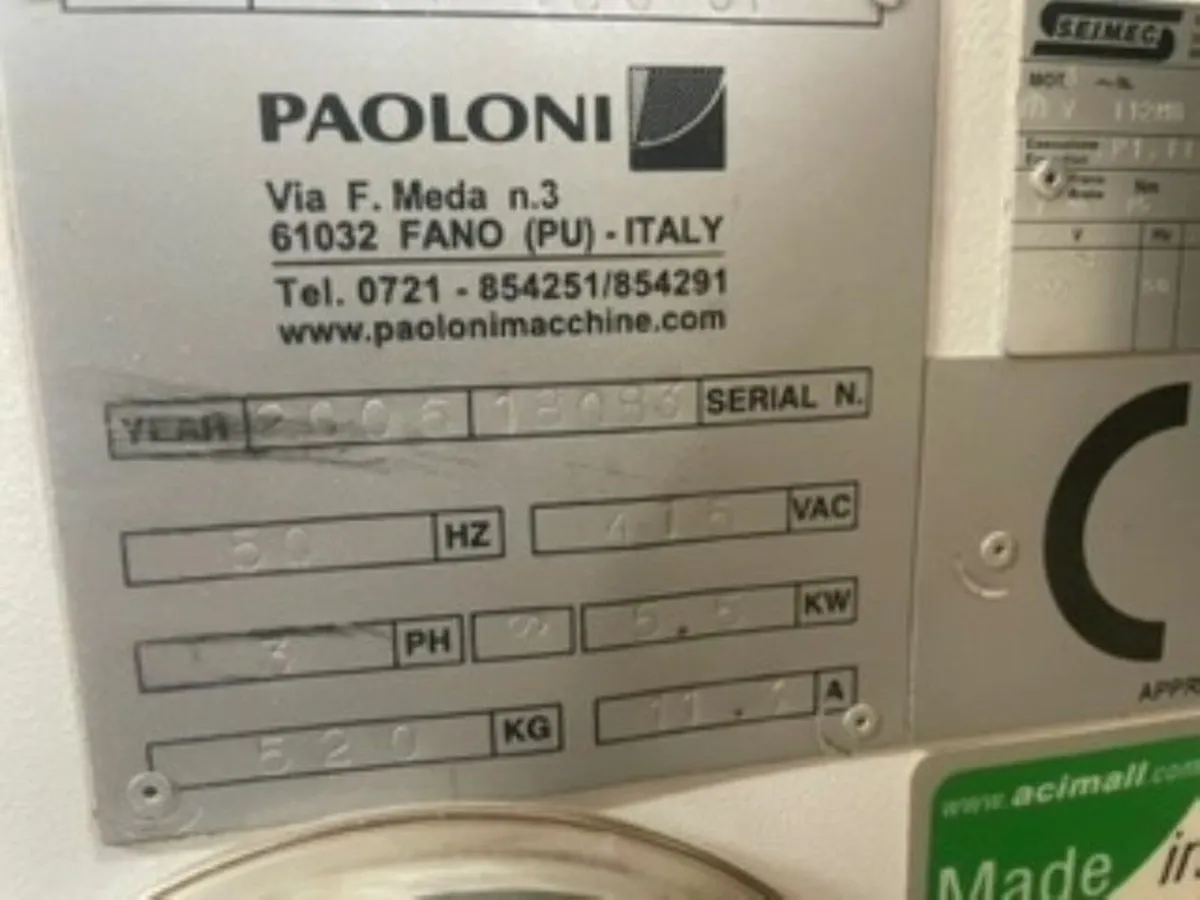

High-quality Italian-made spindle moulder with full -45° to +45° tilt, powerful 7.5 HP motor, and electronic controls. A reliable, workshop-grade machine ideal for joinery and shaping solid timber or MDF panels. Manufacturer: PAOLONI Model: TX160 (3-phase) Year: 2006 Condition: Good - fully functional and in regular working order Technical Specifications: • pindle tilt range: +45° to -45° • Spindle speeds: 1,500 / 3,000 / 4,500 / 6,000 / 8,000 / 10,000 RPM • Main motor power: 7.5 HP (5.5 kW) • Power supply: 3-phase, 400V • Worktable dimensions: 1,200 × 780 mm • Spindle diameter: 30 mm • Usable spindle height: 140 mm • Maximum retractable tool size under table: 320 × 50 mm • Spindle rise & fall: Motorized with mechanical read-out • Spindle tilt adjustment: Motorized with electronic angle display • Fence system: o Handwheel with read-out for full stroke movement o Handwheel with read-out for infeed foot movement o Motorized quick-flipping system to clear the table o Quick locking system of the table fence o Dust extraction hood diameter: 120 mm o Aluminium plates • Additional features: o Pedal-operated mechanical brake o Adjustable sector on the table to support workpieces according to tool diameter o Oversized front door to facilitate speed change Available for collection only.
